Low loss Phase Stable Cable
Low loss Phase Stable Cable

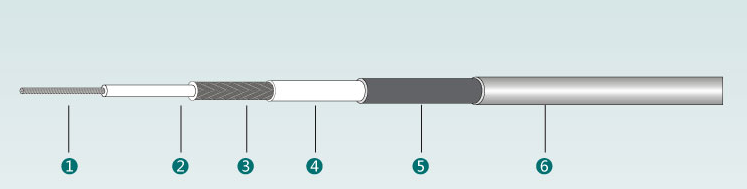

Construction Specification
| Item | Material | Diameter(mm) |
|---|---|---|
| 1. Inner Conductor | Silver Plated Copper Twisted | 19/0.29 |
| 2. Dielectric | LD PTFE | 3.95 |
| 3. Outer Conductor | Spiral Wrapped Silver Plated Copper tape | 4.10 |
| 4. Ineer Jacket | LD PTFE | -- |
| 4. Shield | Silver Plated Copper Tape Braid | 4.70 |
| 6. Jacket | LD PTFE | 6.20 |
Electrical Characteristics
| Capacitance(pF/m) | Nom.80.4 |
| Impedance(ohm) | 50 |
| Velocity of Propagation(%) | 83 |
| Time Delay(ns/m) | 4.1 |
| Max Operating Frequency(MHz) | 18 |
| Voltage Withstanding(kVrms 60Hz/1 min.) | 3.0 |
| Shielding Effectiveness(dB) | 100 |
Mechanical and Environmental Characteristic
| Operating Temp.(℃) | -55 to +165 |
| Min Bending Radius(mm) | 12.7 |
| Min Bending Radius Repeated(mm) | 25.4 |
| RoHS | Compliant |
Attenuation & Average Power@ 20℃ at Sea Level
| Frequency(GHz) | Attenuation(dB/m) | Power(CW) |
|---|---|---|
| 2.0 | 0.50 | 660 |
| 4.0 | 0.72 | 490 |
| 6.0 | 0.89 | 405 |
| 8.0 | 1.04 | 320 |
| 10.0 | 1.18 | 280 |
| 12.0 | 1.31 | 255 |
| 16.0 | 1.54 | 215 |
| 18.0 | 1.65 | 200 |
