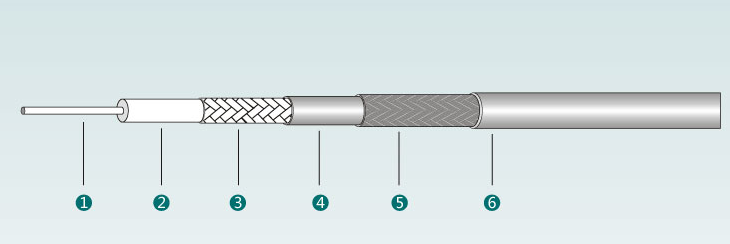

Construction Specification

  Item  Material  Diameter(mm)
  1. Inner Conductor   Silver Plated Copper   1.57
  2. Dielectric   LD PTFE   4.70
  3. Outer Conductor 1   Silver Plated Copper Tape Braid   --
  4. Outer Conductor 2   Aluminum foil   --
  5. Outer Conductor 3   Silver Plated Copper Tape Braid   5.77
  6. Jacket   FEP   6.35

Electrical Characteristics

  Capacitance(pF/m)   Nom.87.6
  Impedance(ohm)   50
  Velocity of Propagation(%)   76
  Time Delay(ns/m)   4.3
  Max Operating Frequency(MHz)   18
  Voltage Withstanding(kVrms 60Hz/1 min.)   2.0

Mechanical and Environmental Characteristic

  Operating Temp.(℃)   -55 to +200
  Min Bending Radius(mm)   51
  RoHS   Compliant

Attenuation & Average Power@ 20℃ at Sea Level

  Frequency(GHz)  Attenuation(dB/m)  Power(CW)
  0.1   0.08   3309
  0.4   0.15   1635
  1.0   0.25   1020
  2.0   0.35   710
  3.0   0.43   572
  8.0   0.72   336
  10.0   0.83   297
  12.0   0.90   268
  13.5   0.97   251
  16.0   1.05   227
  18.0   1.12   212
