Low loss Phase Stable Cable
Low loss Phase Stable Cable

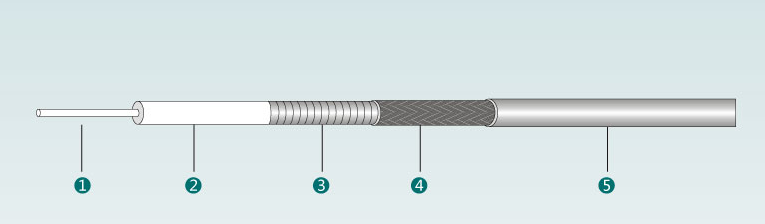

Construction Specification
| Item | Material | Diameter(mm) |
|---|---|---|
| 1. Inner Conductor | Silver Plated Copper | 1.12 |
| 2. Dielectric | LD PTFE | 3.30 |
| 3. Outer Conductor 1 | Spiral Wrapped Silver Plated Copper tape | -- |
| 4. Outer Conductor 2 | Silver Plated Copper Tape Braid | 3.90 |
| 6. Jacket | FEP | 4.50 |
Electrical Characteristics
| Capacitance(pF/m) | Nom.87 |
| Impedance(ohm) | 50 |
| Velocity of Propagation(%) | 76 |
| Time Delay(ns/m) | 4.4 |
| Max Operating Frequency(MHz) | 33 |
| Voltage Withstanding(kVrms 60Hz/1 min.) | 2.0 |
| Shielding Effectiveness(dB) | 90 |
Mechanical and Environmental Characteristic
| Operating Temp.(℃) | -55 to +165 |
| Min Bending Radius(mm) | 13 |
| Min Bending Radius Repeated(mm) | 20 |
| RoHS | Compliant |
Attenuation & Average Power@ 20℃ at Sea Level
| Frequency(GHz) | Attenuation(dB/m) | Power(CW) |
|---|---|---|
| 1.0 | 0.320 | 600 |
| 2.0 | 0.457 | 420 |
| 3.0 | 0.564 | 345 |
| 5.0 | 0.737 | 270 |
| 8.0 | 0.945 | 210 |
| 10.0 | 1.070 | 190 |
| 12.0 | 1.170 | 170 |
| 18.0 | 1.460 | 140 |
