Low loss Phase Stable Cable
Low loss Phase Stable Cable

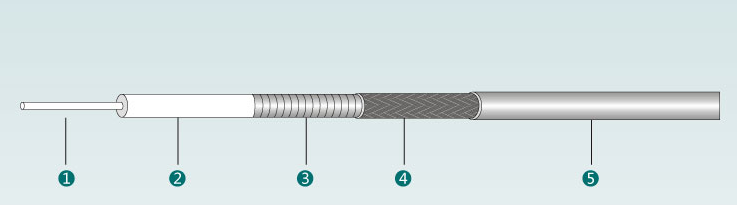

Construction Specification
| Item | Material | Diameter(mm) |
|---|---|---|
| 1. Inner Conductor | Silver Plated Copper | 1.40 |
| 2. Dielectric | LD PTFE | 3.80 |
| 3. Outer Conductor 1 | Spiral Wrapped Silver Plated Copper tape | -- |
| 4. Outer Conductor 2 | Silver Plated Copper Tape Braid | 4.30 |
| 6. Jacket | FEP | 5.21 |
Electrical Characteristics
| Capacitance(pF/m) | Nom.80.4 |
| Impedance(ohm) | 50 |
| Velocity of Propagation(%) | 83 |
| Time Delay(ns/m) | 26.5 |
| Max Operating Frequency(MHz) | 18 |
| Voltage Withstanding(kVrms 60Hz/1 min.) | 2.0 |
| Shielding Effectiveness(dB) | 100 |
Mechanical and Environmental Characteristic
| Operating Temp.(℃) | -55 to +165 |
| Min Bending Radius(mm) | 12.7 |
| Min Bending Radius Repeated(mm) | 38.1 |
| RoHS | Compliant |
Attenuation & Average Power@ 20℃ at Sea Level
| Frequency(GHz) | Attenuation(dB/m) | Power(CW) |
|---|---|---|
| 1.0 | 0.253 | 850 |
| 2.0 | 0.359 | 600 |
| 3.0 | 0.442 | 490 |
| 5.0 | 0.575 | 390 |
| 8.0 | 0.733 | 300 |
| 10.0 | 0.823 | 270 |
| 12.0 | 0.906 | 240 |
| 18.0 | 1.120 | 190 |
