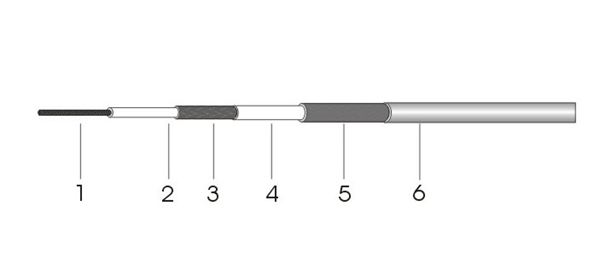

Construction Specification

  Item  Material  Diameter(mm)
  1. Inner Conductor   Silver Plated Copper Clad Steel    7×0.102
  2. Dielectric   PTFE   0.86
  3. Inner Braiding   Silver Plated Copper Braid   Nom.1.26
  4. Inner Jacket   FEP   1.83
  5. Outer Braiding   Silver Plated Copper Braid   Nom.2.29
  6. Outer Jacket   FEP   2.95

Electrical Characteristics

  Capacitance(pF/m)   96.45
  Impedance(ohm)   50
  Velocity of Propagation(%)   70
  Max Operating Voltage(Vrms)   1000
  Max Operating Frequency(GHz)   3.0

Mechanical and Environmental Characteristics

  Operating Temp.(℃)   -55 to +200
  Bending Radius(mm)   15
  ROHS   Compliant

Attenuation

  Frequency(MHz)  Attenuation(dB/m)
  100   0.453
  400   0.912
  1000   1.457
  3000   2.572
