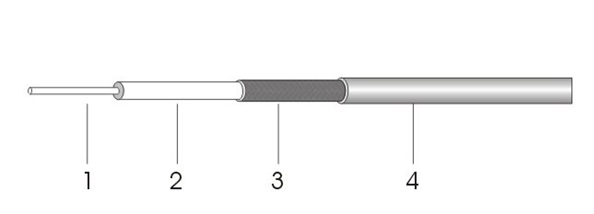

Construction Specification

  Item  Material  Diameter(mm)
  1. Inner Conductor   Silver Plated Copper Clad Steel   7X0.102
  2. Dielectric   PTFE   0.86
  3. Outer Conductor   Silver Plated Copper Braid   Nom.1.30
  4. Jacket

  PTFE

  1.71

Electrical Characteristics

  Capacitance(pF/m)   96.5
  Impedance(ohm)   50
  Velocity of Propagation(%)   70
  Max Operating Voltage(KVrms)   1.0
  Max Operating Frequency(MHz)   3000

Mechanical and Environmental Characteristics

  Operating Temp.(℃)   -55 to +250
  Bending Radius(mm)   10
  ROHS   Compliant

Attenuation

  Frequency(MHz)  Attenuation(dB/m)
  100   0.453
  400   0.912
  1000   1.457
  3000   2.572
