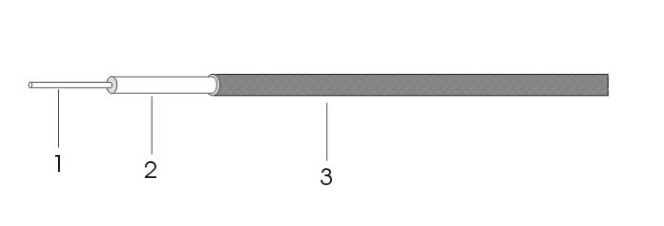

Construction Specification

  Item  Material  Diameter(mm)
  1. Inner Conductor   Silver Plated Copper   0.93
  2. Dielectric   PTFE   5.27

  3. Outer Conductor

  Tin Soaked Copper Braid   6.20

Electrical Characteristic

  Capacitance(pF/m)   63.5
  Impedance(ohm)   75
  Velocity of Propagation(%)   70
  Cutoff frequency(GHz)   18
  Time Delay(ns/m)   4.7

  Max Operating Voltage(kVrms)

  3.5

  Shielding Effectiveness up to 18GHz (dB)

  100

Mechanical Characteristic

  Min. Bending Radius Static(mm)   25
  Min. Bending Radius Repeated(mm)   120

  Operating Temp.(℃)

  -55 to +125

Attenuation & Average Power @ 20℃ at Sea Level

  Frequency(GHz)  Attenuation(dB/m)

  Power(CW)

  0.5   0.04   1653
  1.0   0.24   1134
  5.0   0.60   450
  10.0   0.93   293
