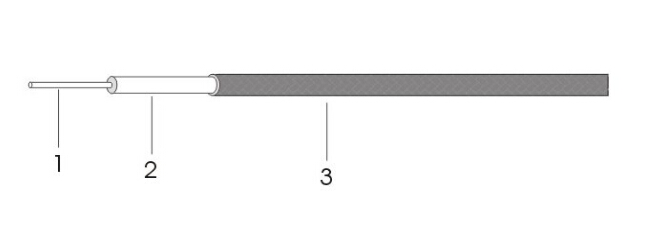

Construction Specification
| Item | Material | Diameter(mm) |
|---|---|---|
| 1. Inner Conductor | Silver Plated Copper Clad Steel | 0.31 |
| 2. Dielectric | PTFE | 0.94 |
|
3. Outer Conductor |
Tin Soaked Copper Braid | 1.19 |
Electrical Characteristic
| Capacitance(pF/m) | 95 |
| Impedance(ohm) | 50 |
| Velocity of Propagation(%) | 70 |
| Cutoff frequency(GHz) | 109 |
| Time Delay(ns/m) | 4.7 |
|
Shielding Effectiveness up to 18GHz(dB) |
100 |
Mechanical Characteristic
| Min. Bending Radius Static(mm) | 4 |
| Min. Bending Radius Repeated (mm) | 20 |
| Operating Temp. (℃) | -55 to +125 |
Attenuation & Average Power @ 20℃ at Sea Level
| Frequency(GHz) | Attenuation(dB/m) | Power(CW) |
|---|---|---|
| 0.5 | 0.79 | 62.2 |
| 1.0 | 1.12 | 43.7 |
| 3.0 | 2.18 | 24.8 |
| 5.0 | 2.58 | 19.1 |
| 10.0 | 3.73 | 13.3 |
| 20.0 | 5.44 | 9.2 |
