Construction Specification

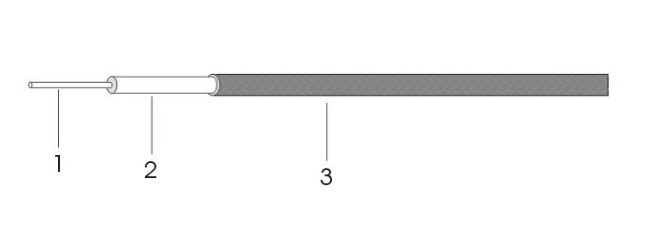

  Item  Material  Diameter(mm)
  1. Inner Conductor   Silver Plated Copper   1.63
  2. Dielectric   PTFE   3.00

  3. Outer Conductor

  Tin Soaked Copper Braid   3.52

Electrical Characteristic

  Capacitance(pF/m)   190.4
  Impedance(ohm)   25
  Velocity of Propagation(%)   70
  Cutoff frequency(GHz)   29
  Time Delay(ns/m)   4.7

  Shielding Effectiveness up to 18GHz (dB)

  100

Mechanical Characteristic

  Min. Bending Radius Static(mm)   10
  Min. Bending Radius Repeated(mm)   40

  Operating Temp.(℃)

  -55 to +125

Attenuation & Average Power @ 20℃ at Sea Level

  Frequency(GHz)  Attenuation(dB/m)  Power(CW)
  0.5   0.35   417
  1.0   0.49   289
  5.0   1.15   158
  10.0   1.70   85
  20.0   2.58   56
