Semi-Flexible Cable

670-141/75 More Products

Home > PRODUCTS > RF transmission > RF Cable

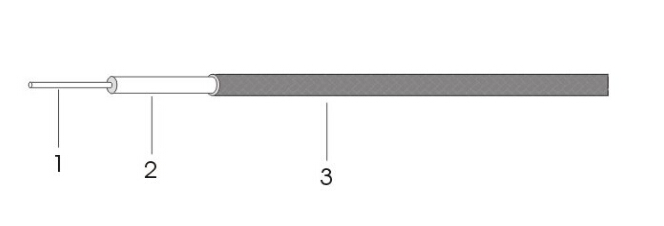

Construction Specification

Item Material Diameter(mm)

1. Inner Conductor Silver Plated Copper 0.52

2. Dielectric PTFE 3.00

3. Outer Conductor
Tin Soaked Copper Braid 3.52

Electrical Characteristic

Capacitance(pF/m) 62

  Impedance(ohm) 75

  Velocity of Propagation(%) 70

  Cutoff frequency(GHz) 37

  Time Delay(ns/m) 4.7

Shielding Effectiveness up to 18GHz (dB)
100

Mechanical Characteristic

Min. Bending Radius Static(mm) 8

  Min. Bending Radius Repeated(mm) 40

Operating Temp.(℃)

-55 to +125

Attenuation & Average Power @ 20℃ at Sea Level

Frequency(GHz) Attenuation(dB/m)   Power(CW)

0.5 0.28 549.0

1.0 0.40 382.2

5.0 0.97 160.6

10.0 1.45 108.6

20.0 2.21 72.4
