Semi-Flexible Cable

670-250/35 More Products

Home > PRODUCTS > RF transmission > RF Cable

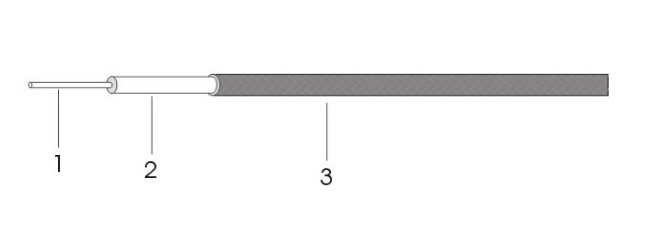

Construction Specification

Item Material Diameter(mm)

1. Inner Conductor Silver Plated Copper 2.30

2. Dielectric PTFE 5.27

3. Outer Conductor
Tin Soaked Copper Braid 6.20

Electrical Characteristic

Capacitance(pF/m) 136

  Impedance(ohm) 35

  Velocity of Propagation(%) 70

  Cutoff frequency(GHz) 18

  Time Delay(ns/m) 4.7

Shielding Effectiveness up to 18GHz (dB)
100

Mechanical Characteristic

Min. Bending Radius Static(mm) 25

  Min. Bending Radius Repeated(mm) 120

Operating Temp.(℃)

-55 to +125

Attenuation & Average Power @ 20℃ at Sea Level

Frequency(GHz) Attenuation(dB/m)
Power(CW)

0.5 0.04 1517

1.0 0.26 1041

5.0 0.66 413

10.0 1.03 269
