SMA connectors are a type of mini coaxial connectors designed according to the standard of MIL-C-39012, IEC 60169-15 and CECC 22110/22111. These products are of thread connecting mechanism and high frequency and can provide the broadband from DC to 18GHz and are characterized by low-frequency reflection and an impedance of 50Ω. The main features of this series are high mechanical strength, high durability and low-voltage VSWR. They are of long span, superior performance and high reliability and can be widely used to connect RF coaxial cables or micro-wave in the RF circuits of base stations, cable assemblies, components, instruments and meters, military use, computer procedure control and digital communications equipment.
Primary Technical Characteristics
| Elecreical Performance | Material and Mechanical Performance | |||||
|---|---|---|---|---|---|---|
| Characteristic Impedance | 50Ω | Center Contact | Pin | Brass | Gold Plating | |
| Frequency Range | DC~18GHz | Socket | Beryllium Copper | Gold Plating | ||
| Rated Voltage | 335V rms | Body and Other Metal Parts | Brass/Stainless Steel | Gold plating / Passivation | ||
| Dielectric Strength Voltage | 1000V rms | Elastic Part | Beryllium Copper | Gold Plating | ||
| VSWR | ≤1.05+0.1f(GHz) | Insulator | PTFE or LCP | |||
| ≤1.05+0.08f(GHz) | Seal Ring | Silicon Rubber | ||||
| Contact Resistance | ≤3mΩ | Center Contact | Temperature Range | -65℃ ~+165℃ | ||
| ≤2mΩ | Outer Contact | Durability | 500 times | |||
| Insulation Resistance | ≥5000MΩ | |||||
| Insertion Loss | ≤0.06√f(GHz)dB | |||||
Model
 |
 |

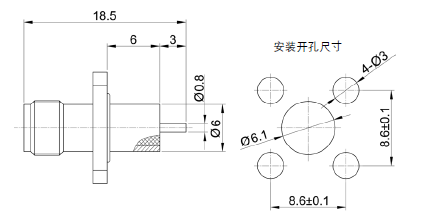

| Part Number | Cable Type | Notes |
|---|---|---|
| SMA-KFD148 | |
 |
 |

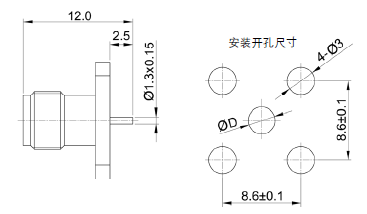

| Part Number | D | Notes |
|---|---|---|
| SMA-KFD149 | * | |
 |
 |

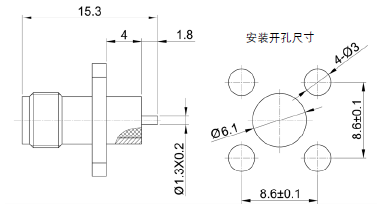

| Part Number | Cable Type | Notes |
|---|---|---|
| SMA-KFD152 | |
 |
 |

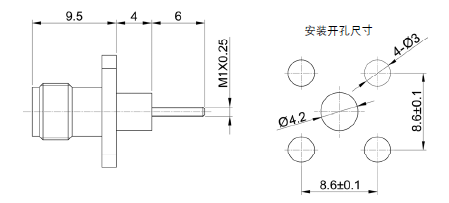

| Part Number | Cable Type | Notes |
|---|---|---|
| SMA-KFD153 | |
 |
 |

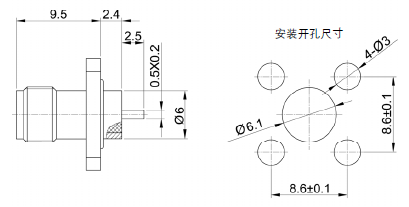

| Part Number | Cable Type | Notes |
|---|---|---|
| SMA-KFD154 | |
 |
 |

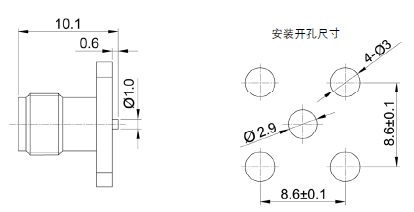

| Part Number | Cable Type | Notes |
|---|---|---|
| SMA-KFD155G | |
 |
 |

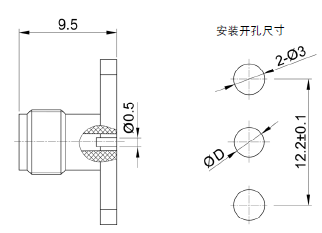

| Part Number | D | Notes |
|---|---|---|
| SMA-KFD159 | * | |
 |
 |

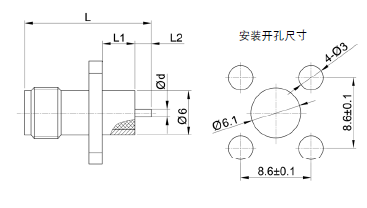

| Part Number | L1 | L2 | L | d |
|---|---|---|---|---|
| SMA-KFD160 | 4.0 | 2.0 | 15.5 | 1.0 |
| SMA-KFD161 | 4.0 | 5.0 | 18.5 | 1.0 |
| SMA-KFD162 | 4.0 | 9.0 | 22.5 | 1.0 |
| SMA-KFD277 | 4.0 | 1.5 | 15.0 | 0.7 |
| SMA-KFD281 | 3.0 | 6.0 | 18.5 | 1.3 |
 |
 |

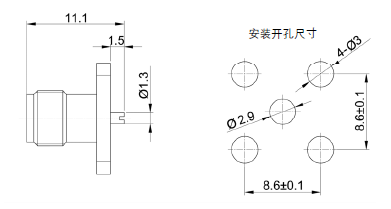

| Part Number | Cable Type | Notes |
|---|---|---|
| SMA-KFD163 | |
 |
 |

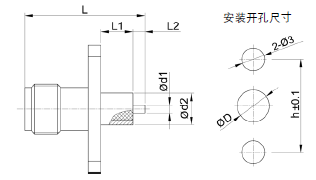

| Part Number | L1 | L2 | L | h | d1 | d2 | D |
|---|---|---|---|---|---|---|---|
| SMA-KFD164 | 4.0 | 1.5 | 15.0 | 12.2 | 0.8 | 4.1 | 4.2 |
| SMA-KFD165 | 4.0 | 1.5 | 15.0 | 10.2 | 0.8 | 4.0 | 4.2 |
| SMA-KFD166 | 4.0 | 0.8 | 14.3 | 12.2 | 0.6 | 4.0 | 4.2 |
| SMA-KFD273 | 5.0 | 3.0 | 17.5 | 10.2 | 1.0 | 4.5 | 4.6 |
 |
 |

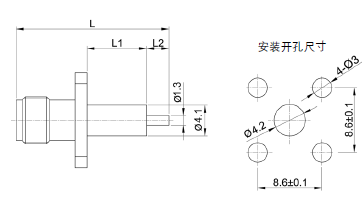

| Part Number | L1 | L2 | L |
|---|---|---|---|
| SMA-KFD177 | 8.0 | 3.0 | 20.5 |
| SMA-KFD178 | 5.0 | 4.2 | 18.7 |
| SMA-KFD285 | 25.0 | 5.0 | 39.5 |
| SMA-KFD298 | 25.0 | 12.0 | 46.5 |
 |
 |

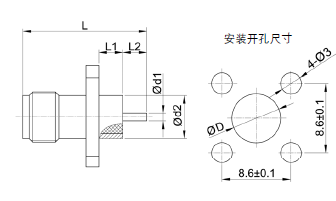

| Part Number | L1 | L2 | L | d1 | d2 | D |
|---|---|---|---|---|---|---|
| SMA-KFD179 | 3.0 | 3.0 | 15.5 | 1.0 | 6.0 | 6.1 |
| SMA-KFD194 | 4.0 | 5.0 | 18.5 | 1.3 | 6.0 | 6.1 |
| SMA-KFD198 | 4.0 | 2.0 | 15.6 | 0.8 | 4.8 | 4.9 |
| SMA-KFD202 | 4.0 | 0.8 | 14.4 | 0.6 | 4.0 | 4.1 |
| SMA-KFD279 | 2.4 | 2.4 | 14.5 | 0.5 | 5.2 | 5.3 |
