SMA connectors are a type of mini coaxial connectors designed according to the standard of MIL-C-39012, IEC 60169-15 and CECC 22110/22111. These products are of thread connecting mechanism and high frequency and can provide the broadband from DC to 18GHz and are characterized by low-frequency reflection and an impedance of 50Ω. The main features of this series are high mechanical strength, high durability and low-voltage VSWR. They are of long span, superior performance and high reliability and can be widely used to connect RF coaxial cables or micro-wave in the RF circuits of base stations, cable assemblies, components, instruments and meters, military use, computer procedure control and digital communications equipment.
Primary Technical Characteristics
| Elecreical Performance | Material and Mechanical Performance | |||||
|---|---|---|---|---|---|---|
| Characteristic Impedance | 50Ω | Center Contact | Pin | Brass | Gold Plating | |
| Frequency Range | DC~18GHz | Socket | Beryllium Copper | Gold Plating | ||
| Rated Voltage | 335V rms | Body and Other Metal Parts | Brass/Stainless Steel | Gold plating / Passivation | ||
| Dielectric Strength Voltage | 1000V rms | Elastic Part | Beryllium Copper | Gold Plating | ||
| VSWR | ≤1.05+0.1f(GHz) | Insulator | PTFE or LCP | |||
| ≤1.05+0.08f(GHz) | Seal Ring | Silicon Rubber | ||||
| Contact Resistance | ≤3mΩ | Center Contact | Temperature Range | -65℃ ~+165℃ | ||
| ≤2mΩ | Outer Contact | Durability | 500 times | |||
| Insulation Resistance | ≥5000MΩ | |||||
| Insertion Loss | ≤0.06√f(GHz)dB | |||||
Model
 |
 |
| Part Number | Cable Type | Notes |
|---|---|---|
| SMA-KFD65 |
 |
 |

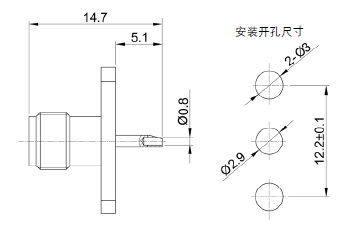

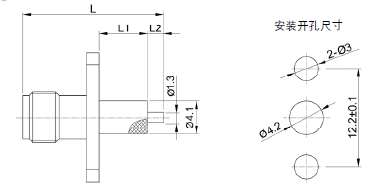

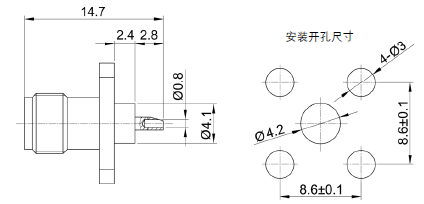

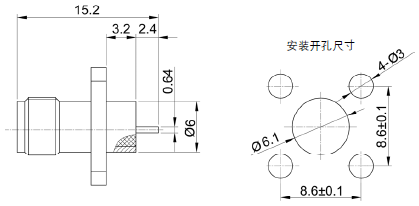

| Part Number | L1 | L2 | L | d1 | d2 | D |
|---|---|---|---|---|---|---|
| SMA-KFD68B | 3.2 | 2.5 | 15.2 | 0.7 | 2.1 | 2.2 |
| SMA-KFD83 | 2.4 | 2.4 | 14.5 | 1.3 | 4.1 | 4.2 |
| SMA-KFD85 | 13.0 | 5.0 | 27.5 | 1.3 | 4.1 | 4.2 |
 |
 |

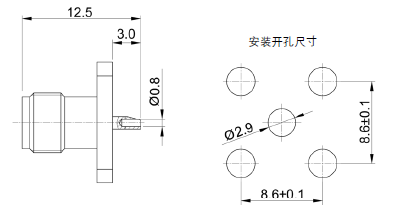

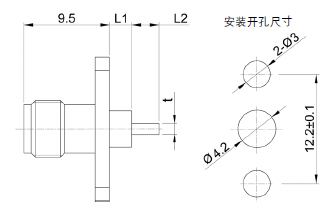

| Part Number | L1 | L2 | t |
|---|---|---|---|
| SMA-KFD69 | 2.5 | 3.0 | 0.62 |
| SMA-KFD73 | 4.0 | 1.6 | 0.55 |
 |
 |

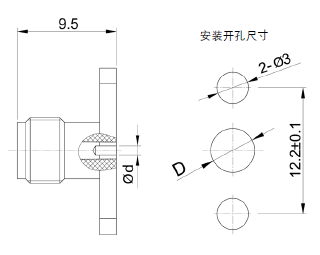

| Part Number | d | Pin | D |
|---|---|---|---|
| SMA-KFD71 | 0.6 | 0.47~0.5 | * |
| SMA-KFD72 | 0.4 | 0.30~0.35 | * |
| SMA-KFD72G | 0.4 | 0.30~0.35 | * |
| SMA-KFD75 | 0.6 | 0.47~0.50 | * |
 |
 |

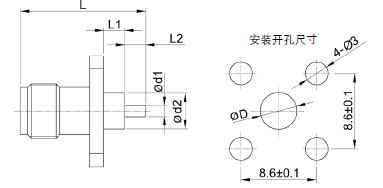

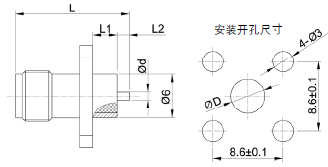

| Part Number | L1 | L2 | L | d | D |
|---|---|---|---|---|---|
| SMA-KFD76 | 3.0 | 1.5 | 14.0 | 0.7 | 6.1 |
| SMA-KFD76AG | 3.0 | 1.5 | 14.0 | 0.7 | 6.2 |
| SMA-KFD95 | 4.0 | 1.5 | 15.1 | 0.8 | 6.1 |
| SMA-KFD2.5 | 2.5 | 2.5 | 14.5 | 1.3 | 4.2 |
 |
 |

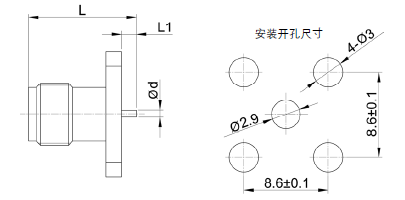

| Part Number | L1 | L | d |
|---|---|---|---|
| SMA-KFD78 | 1.5 | 11.0 | 0.7 |
| SMA-KFD88 | 1.5 | 14.1 | 0.5 |
 |
 |
| Part Number | d | D |
|---|---|---|
| SMA-KFD75AG | 0.6 | * |
| SMA-KFD191 | 0.8 | * |
 |
 |
| Part Number | Cable Type | Notes |
|---|---|---|
| SMA-KFD80 | |
 |
 |
| Part Number | L1 | L2 | L |
|---|---|---|---|
| SMA-KFD84 | 3.0 | 3.0 | 15.5 |
| SMA-KFD84G | 3.0 | 3.0 | 15.5 |
| SMA-KFD102 | 5.0 | 3.0 | 17.6 |
 |
 |
| Part Number | Cable Type | Notes |
|---|---|---|
| SMA-KFD86 | |
 |
 |
| Part Number | L1 | L |
|---|---|---|
| SMA-KFD87 | 3.0 | 15.0 |
| SMA-KFD256 | 3.2 | 15.3 |
 |
 |
| Part Number | Cable Type | Notes |
|---|---|---|
| SMA-KFD90 | |
