Aviation Military Installation Wire
Aviation Military Installation Wire
Performance
| Rated Voltage | 600V |
| Rated Temperature | Sliver plated conductor with any jacket: -55 to +200℃ |
| Nickel plated conductor with PTFE jacket: -55 to +260℃ |

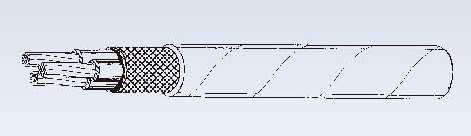

Construction
| Dielectric | PTFE |
| Conductor | Sliver plated copper or Nickel plated copper |
| Shield | Silver Plated Copper Braid (85%) |
| Jacket | FEP or PTFE tape |
| Colour | MIL-STD-104 Standard |
Size, Resistance and Weight -- 1 core
| Line Group | Shield Diameter (nom., mm) | Jacket Diameter (nom., mm) | Weight (kg/km) |
|
|---|---|---|---|---|
| AWG | Stranding | |||
| 10 | 37/26 | 4.09 | 4.70 | 76.0 |
| 12 | 19/25 | 3.18 | 3.73 | 51.9 |
| 14 | 19/27 | 2.92 | 3.48 | 37.5 |
| 16 | 19/29 | 2.54 | 3.10 | 26.8 |
| 18 | 19/30 | 2.29 | 2.79 | 23.4 |
| 20 | 19/32 | 2.03 | 2.54 | 17.5 |
| 22 | 19/34 | 1.83 | 2.34 | 14.4 |
| 24 | 19/36 | 1.68 | 2.18 | 12.7 |
| 26 | 19/38 | 1.42 | 1.93 | 9.37 |
| 28 | 7/36 | 1.32 | 1.83 | 7.65 |
| 30 | 7/38 | 1.24 | 1.75 | 7.11 |
| 32 | 7/40 | 1.19 | 1.70 | 6.68 |
Size, Resistance and Weight -- 2 cores
| Line Group | Shield Diameter (nom., mm) | Jacket Diameter (nom., mm) | Weight (kg/km) |
|
|---|---|---|---|---|
| AWG | Stranding | |||
| 10 | 37/26 | 7.59 | 8.36 | 146.0 |
| 12 | 19/25 | 5.77 | 6.38 | 99.0 |
| 14 | 19/27 | 5.26 | 5.87 | 69.2 |
| 16 | 19/29 | 4.50 | 5.05 | 49.7 |
| 18 | 19/30 | 3.99 | 4.55 | 41.4 |
| 20 | 19/32 | 3.48 | 3.04 | 31.7 |
| 22 | 19/34 | 3.07 | 3.63 | 24.6 |
| 24 | 19/36 | 2.77 | 3.33 | 20.5 |
| 26 | 19/38 | 2.51 | 3.07 | 17.4 |
| 28 | 7/36 | 2.31 | 2.87 | 14.2 |
| 30 | 7/38 | 2.16 | 2.72 | 13.0 |
| 32 | 7/40 | 2.06 | 2.62 | 10.0 |
Size, Resistance and Weight -- 3 cores
| Line Group | Shield Diameter (nom., mm) | Jacket Diameter (nom., mm) | Weight (kg/km) |
|
|---|---|---|---|---|
| AWG | Stranding | |||
| 10 | 37/26 | 8.25 | 9.06 | 208 |
| 12 | 19/25 | 6.28 | 6.94 | 140 |
| 14 | 19/27 | 5.61 | 6.22 | 95.7 |
| 16 | 19/29 | 4.79 | 5.40 | 68.6 |
| 18 | 19/30 | 4.24 | 4.80 | 56.1 |
| 20 | 19/32 | 3.70 | 4.26 | 42.0 |
| 22 | 19/34 | 3.26 | 3.82 | 32.1 |
| 24 | 19/36 | 2.93 | 3.49 | 25.7 |
| 26 | 19/38 | 2.66 | 3.22 | 22.0 |
| 28 | 7/36 | 2.44 | 3.00 | 17.6 |
| 30 | 7/38 | 2.28 | 2.84 | 15.6 |
| 32 | 7/40 | 2.17 | 2.73 | 13.9 |
Size, Resistance and Weight -- 4 cores
| Line Group | Shield Diameter (nom., mm) | Jacket Diameter (nom., mm) | Weight (kg/km) |
|
|---|---|---|---|---|
| AWG | Stranding | |||
| 10 | 37/26 | 9.16 | 9.97 | 268 |
| 12 | 19/25 | 6.96 | 7.67 | 182 |
| 14 | 19/27 | 6.34 | 7.00 | 123 |
| 16 | 19/29 | 5.30 | 5.96 | 86.5 |
| 18 | 19/30 | 4.69 | 5.24 | 70.4 |
| 20 | 19/32 | 4.07 | 4.63 | 52.1 |
| 22 | 19/34 | 3.58 | 4.14 | 39.1 |
| 24 | 19/36 | 3.22 | 3.78 | 31.5 |
| 26 | 19/38 | 2.91 | 3.47 | 26.5 |
| 28 | 7/36 | 2.67 | 3.22 | 21.0 |
| 30 | 7/38 | 2.48 | 3.04 | 18.7 |
| 32 | 7/40 | 2.36 | 2.92 | 17.1 |
