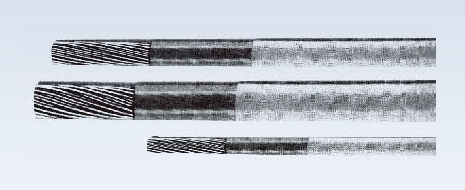

Aviation Military Installation Wire
Aviation Military Installation Wire
Performance
| Rated Voltage | 600V |
| Rated Temperature | 87: -55 to +200℃ |
Construction
Dielectric
| AWG Size | Layer 1 | Layer 2 | Layer 3 | Layer 4 |
|---|---|---|---|---|
| 4/0 to 4 | PTFE tape | PTFE/Polyimide/PTFE tape | PTFE tape | PTFE tape |
| 8 to 6 | PTFE tape | PTFE/Polyimide/PTFE tape | PTFE tape | |
| 10 to 26 | PTFE/Polyimide/PTFE tape | PTFE tape |
| Conductor | Nickel plated copper |
Size, Resistance and Weight -- M22759/87(Nickel plated copper)
| Model | AWG Size | Stranding | Conductor Diameter (mm) | Insulation Diameter (mm) | Weight (kg/km) | Conductor Resistance (Max., Ω/km) | ||
|---|---|---|---|---|---|---|---|---|
| Min. | Max. | Min. | Max. | |||||
| M22759/87-04 | 4/0 | 2109/30 | 14.35 | 15.37 | 14.99 | 16.0 | 1012.9 | 0.177 |
| M22759/87-03 | 3/0 | 1665/30 | 12.70 | 13.72 | 13.46 | 14.2 | 806.1 | 0.233 |
| M22759/87-02 | 2/0 | 1330/30 | 11.18 | 12.07 | 12.07 | 12.8 | 642.1 | 0.292 |
| M22759/87-01 | 0 | 1045/30 | 10.03 | 10.80 | 10.67 | 11.4 | 511.5 | 0.371 |
| M22759/87-1 | 1 | 817/30 | 9.30 | 9.65 | 9.86 | 10.4 | 405.4 | 0.472 |
| M22759/87-2 | 2 | 665/30 | 8.13 | 8.64 | 8.74 | 9.25 | 331.5 | 0.581 |
| M22759/87-4 | 4 | 133/25 | 6.35 | 6.81 | 7.01 | 7.32 | 209.9 | 0.902 |
| M22759/87-6 | 6 | 133/27 | 5.03 | 5.38 | 5.56 | 5.82 | 131.1 | 1.43 |
| M22759/87-8 | 8 | 133/29 | 4.01 | 4.29 | 4.57 | 4.78 | 85.5 | 2.28 |
| M22759/87-10 | 10 | 37/26 | 2.69 | 2.84 | 3.10 | 3.23 | 46.6 | 4.07 |
| M22759/87-12 | 12 | 37/28 | 2.12 | 2.27 | 2.54 | 2.67 | 29.8 | 6.49 |
| M22759/87-14 | 14 | 19/27 | 1.64 | 1.76 | 2.06 | 2.18 | 18.6 | 9.48 |
| M22759/87-16 | 16 | 19/29 | 1.31 | 1.41 | 1.73 | 1.85 | 12.7 | 15.6 |
| M22759/87-18 | 18 | 19/30 | 1.16 | 1.25 | 1.55 | 1.65 | 9.9 | 20.0 |
| M22759/87-20 | 20 | 19/32 | 0.93 | 1.00 | 1.30 | 1.40 | 6.7 | 32.0 |
| M22759/87-22 | 22 | 19/34 | 0.72 | 0.80 | 1.09 | 1.19 | 4.4 | 52.5 |
| M22759/87-24 | 24 | 19/36 | 0.57 | 0.62 | 0.97 | 1.07 | 3.0 | 85.0 |
| M22759/87-26 | 26 | 19/38 | 0.44 | 0.52 | 0.84 | 0.94 | 2.2 | 138 |
