Power Cable

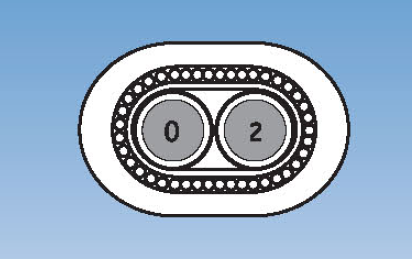

Construction Specification
| Item | Material | Diameter(mm) |
|---|---|---|
| Inner Conductor | Stranded tin plated copper | 49×0.36±0.01 Nom.Φ2.95 |
| Dielectric | SEBS(TPE=Thermoplastic elastomer) (Red, Black) |
3.95±0.15 |
| Cabling | ||
| Shield | Folol tape PET-band | |
| Jacket | Tinplated copper wire(coverage:75%) Grey LSZH-material |
Nom.8.6 Nom.10.4 |
Electrical Characteristics
| Test voltage(KV) | Nom.2.0 |
| Resistance conductor(Ω/km) | Nom.3.5 |
| Insulation resistance | ≥200MΩ·km |
| Current load | ≤25A |
Mechanical and Environmental Characteristics
| Temperature range(℃) | -20 to +80 |
| Pull force | ≤130N |
| Bending radius once(mm) | 100 |
| repeated bending radius(mm) | 180 |
| Weight(Kg/Km) | 185 |
