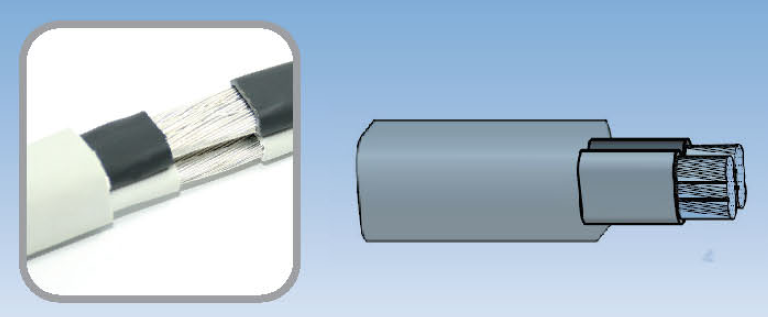

Power Cable
Halogen free, flexible connecting cable for fixed installation. Intended for power supply of telecom equipment, where there are requirements for low inductance and good temperature resistance.
Construction Specification
| Item | Material | Diameter(mm) |
|---|---|---|
| Inner Conductor | 3 parallel stranded tin annealed copper | 3-(42×0.404±0.004) TC |
| Dielectric | LSZH | (4.6±0.2)×(11.0±0.2) |
| Cabling | Parallel | |
| Jacket | Grey LSZH-material | A=11.0(+1.5,-0.5) |
| B=12.5(+1.5,-0.5) | ||
| C=0.7±0.15 T=0.8±0.15 t=0.6+0.3 | ||
Electrical Characteristics
| Inner conductor resistance(ohm/km) | ≤1.24 |
| Insulation strength(AC kv/1min) | ≥2.0 |
| Insulation resistance(G ohm.m) | ≥2.0 |
| Inductance(µH/m) | ≤0.40 |
Mechanical and Environmental Characteristics
| Temperature range(℃) | -20 to +90 |
| Weight(kg/km) | 240 |
| Tensile strength of dielectric and jacket(MPa) | ≥10 |
| Elongation at 100% break | ≥125% |
| ROHS Compliant product | ①IEC60032 ②UL83 ③UL 1685 |
