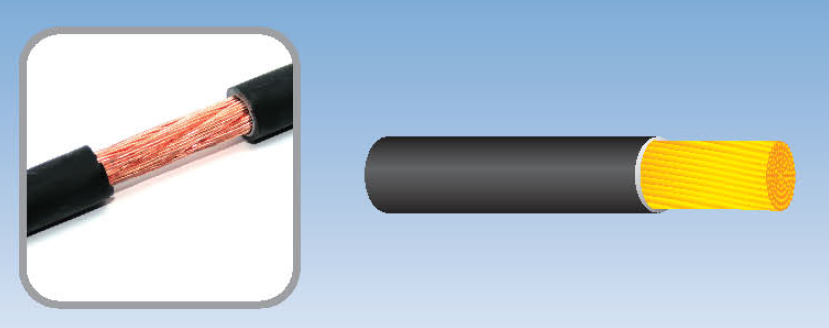

    Flexible single conductor with halogen free insulation, for internal wiring and grounding of equipment. To be used under dry conditions.

    Construction Specification

      Item  Material  Diameter(mm)
      Inner Conductor   stranded annealed copper   128×0.4044±0.004 Cu
      Dielectric   Black LSZH   7.85(+1.5,-1.5)

    Electrical Characteristics

      Inner conductor resistance(ohm/km)   ≤1.21
      Insulation strength(AC kv/1min)   ≥2.0
      Insulation resistance(G ohm.m)   ≥2.0

    Mechanical and Environmental Characteristics

      Temperature range(℃)   -20 to +90
      Weight(kg/km)   1730
      Tensile strength of dielectric and jacket(MPa)   ≥10
      Elongation at 100% break   ≥125%
      Bending radius(mm)   62.8
      ROHS Compliant product   AWM10900  VW-1
