Power Cable
<Upper layer

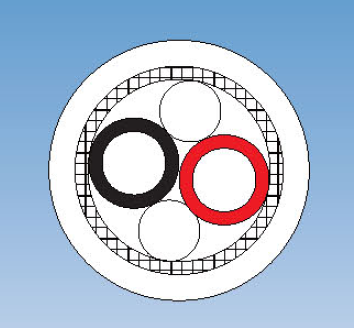

    Construction Specification

      Item  Material  Diameter(mm)
      Inner Conductor   Stranded tin plated copper   28×0.25  Nom.Φ1.54
      Dielectric   SEBS(TPE=Thermoplastic elastomer)   2.4±0.10
      (Red, Black)
      Filling   Two polyester filler   1.6±0.10
      Cabling   Foll tape PET-band
      Shield   Tin plated copper wire(coverage:75%)   5.5±0.20
      Jacket   Grey LSZH-material   7.2±0.20

    Electrical Characteristics

      Test voltage(KV)   Nom.2.0
      Resistance conductor(Ω/km)   Nom.13.5
      Insulation resistance   ≥200MΩ·km
      Current load   ≤10A

    Mechanical and Environmental Characteristics

      Temperature range(℃)   -20 to +80
      Pull force   ≤130N
      Bending radius once(mm)   35
      repeated bending radius(mm)   60
      Weight(Kg/Km)   62
