SSMA-KFD More Products
Primary Technical Characteristics
| Elecreical Performance | Material and Mechanical Performance | |||||
|---|---|---|---|---|---|---|
| Characteristic Impedance | 50Ω | Center Contact | Pin | Beryllium Copper | Gold Plating | |
| Frequency Range | 0~30GHz | Socket | Beryllium Copper | Gold Plating | ||
| Rated Voltage | 250V rms | Body and Other Metal Parts | Brass/Stainless Steel | Gold plating / Passivation | ||
| Dielectric Strength Voltage | 750V rms | Elastic Part | Beryllium Copper | Gold Plating | ||
| VSWR | ≤1.07+0.1F(GHz) | Insulator | PTFE | |||
| Contact Resistance | ≤6.0mΩ | Center Contact | Seal Ring | Silicon Rubber | ||
| ≤2.5mΩ | Outer Contact | Temperature Range | -65℃ ~+165℃ | |||
| Insulation Resistance | ≥10000MΩ | Durability | 500 times | |||
| Insertion Loss | ≤0.06√f(GHz)dB | |||||
Model
 |
 |
| Part Number | Cable Type | Notes |
|---|---|---|

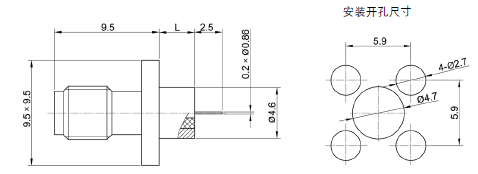

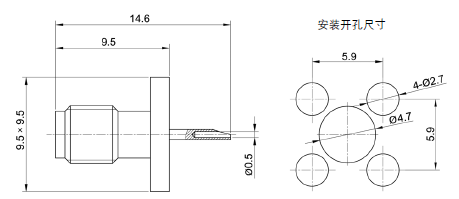

| SSMA-KFD |
 |
 |
| Part Number | L |
|---|---|
| SSMA-KFD1 | 2.4 |
| SSMA-KFD2 | 3.2 |
| SSMA-KFD3 | 4.8 |
 |
 |
| Part Number | Cable Type | Notes |
|---|---|---|

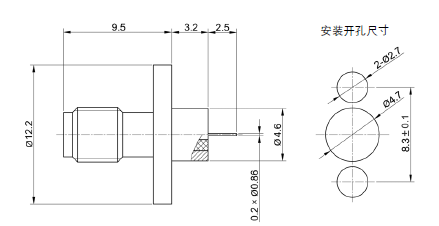

| SSMA-KFD4 | |
