Feature
• Good mechanical and environmental performance.
• Flame retardance meets relevant standards.
• Support high-capacity data transmission.
• Suitable for indoor horizontal cabling.
• Suitable for pigtail fiber, jumper wire, and optical connection in optical communication machine room, optical distribution frame, optical device, equipment, etc.
• Jacket can be made of flame retardant PVC, LSZH flame retardant polyolefin or other agreed materials.
• Customized design is available.
Technical Parameter

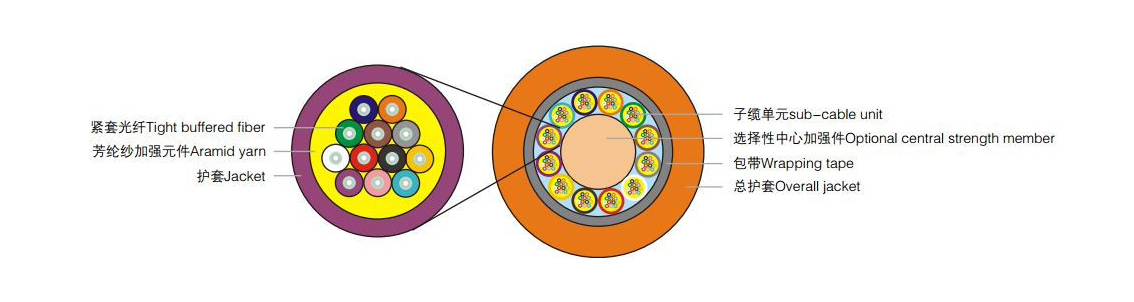

| Fiber Count | Cable Structure(unit*core number) | Cable Size (mm) | Cable Weight (kg/km) | Tensile Load (N) | Crush Load (N/100mm) | Temperature Range (℃) |
||
|---|---|---|---|---|---|---|---|---|
| 长期 | 短暂 | 长期 | 短暂 | |||||
| 16 | 4×4 | 13.1 | 132 | 400 | 1000 | 300 | 1000 | -20~+60 |
| 24 | 6×4 | 16 | 192 | 500 | 1200 | 300 | 1000 | |
| 36 | 6×6 | 17.5 | 235 | 550 | 1300 | 300 | 1000 | |
| 48 | 6×8 | 18 | 266 | 600 | 1400 | 300 | 1000 | |
| 64 | 8×8 | 20 | 308 | 650 | 1400 | 300 | 1000 | |
| 72 | 6×12 | 21 | 335 | 700 | 1500 | 300 | 1000 | |
| 96 | 8×12 | 23.2 | 478 | 800 | 1600 | 300 | 1000 | |
Note: 1. Minimum bend radius: for B1.1, B1.3, B4 single mode fiber and multi-mode fiber, 20D under dynamic bending and 10D
under static bending; for B6 fiber, 10D (dynamic) and 5D (static). (D is overall diameter of round cable)
2. The data of cable size and weight are calculated according to ф0.9 tight buffered fiber.
3．All the data in the table are for reference and subject to change without notification.
