40AWGx134C 110PF More Products

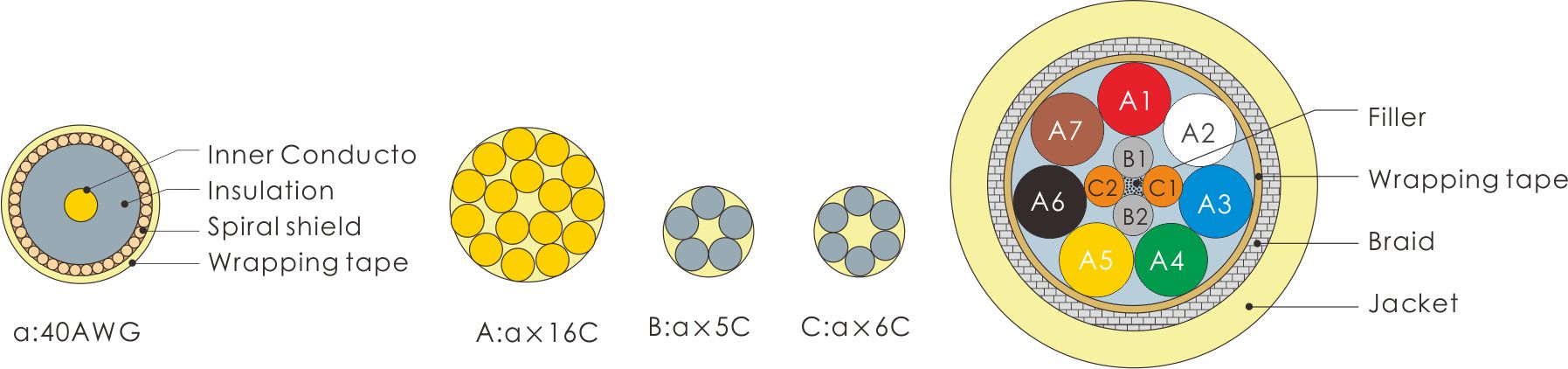

Construction And Material

ITEM		A (40AWG x 16C)	B (40AWG x 5C)	C(40AWG x 6C)
Core No.		134
Inner Conductor	Material	Silver plated copper alloy
	Composition(No./mm)	7/0.03
	Diameter(mm)	0.09
Insulation	Material	Blue PFA
	Thickness (mm)	0.07
	Diameter(mm)	0.23
Spiral shield	Material	Tinned copper alloy wire
	Diameter(mm)	0.025
Coaxial Tape	Material	polyester tape
	Color	A1~A7: Red, White, Blue, Green, Yellow, Black, Brown; B1~B2: Gray; C1~C2: Orange
	Thickness(mm)	0.02
	Diameter(mm)	0.32
Twisting	First layer	a x 5	a x 5	a x 56
	Second layer	a x 11	/	/
Filler	Material	kevlar
Cable assembly	First layer	B x 2+C x 2
	Second layer	A x 7
	Diameter(mm)	Nom.4.7
Wrapping tape	Material	PTFE tape
Braid Shield	Material	Tinned tinsel copper
	Diameter(mm)	0.25
	Coverage(%)	Nom. 95
Jacket	Material	Non-migration PVC, Iovry
	Nom.Thickness(mm)	0.75
	Diameter(mm)	6.9±0.3

Properties

Item	Standard Value
Rating temperature(℃)	60
Rating voltage(V)	30
Conductor Resistance(Ω/km@20℃)	max.5000
Insulation Resistance(MΩ-km@20℃)	min.1000
Dielectric Strenth(AC V/1min)	500@Inner~Outer Conductor, 5000@Shield~Ground earth
Capacitance(pF/m@1kHz)	Nom. 110±10
Characteristic Impedance(Ω@10MHz)	Nom. 50
Bending test(±90°,12.7mm, 0.5kgf, 250000times)	Inner conductor, Braid, Jacket fine
