Micro Coaxial Cable
Micro Coaxial Cable
43AWGx200C 60PF More Products
- · 40AWGx134C 110PF
- · 40AWGx135C 50PF
- · 40AWGx132C 110PF
- · 40AWGx132C 90PF
- · 40AWGx132C 52PF
- · 40AWGx82C 110PF
- · 40AWGx68C 50PF
- · 41AWGx132C 50PF
- · 42AWGx196C 50PF
- · 42AWGx192C+32AWG×14C 110PF
- · 42AWGx132C 60PF
- · 42AWGx132C 52PF
- · 42AWGx128C 110PF
- · 43AWGx200C 60PF
- · 44AWGx33C 60PF
- · Mic 1.37
- · Mic 1.32DTA
- · Mic 1.13
- · Mic 0.98
- · 40AWG
- · 42AWG

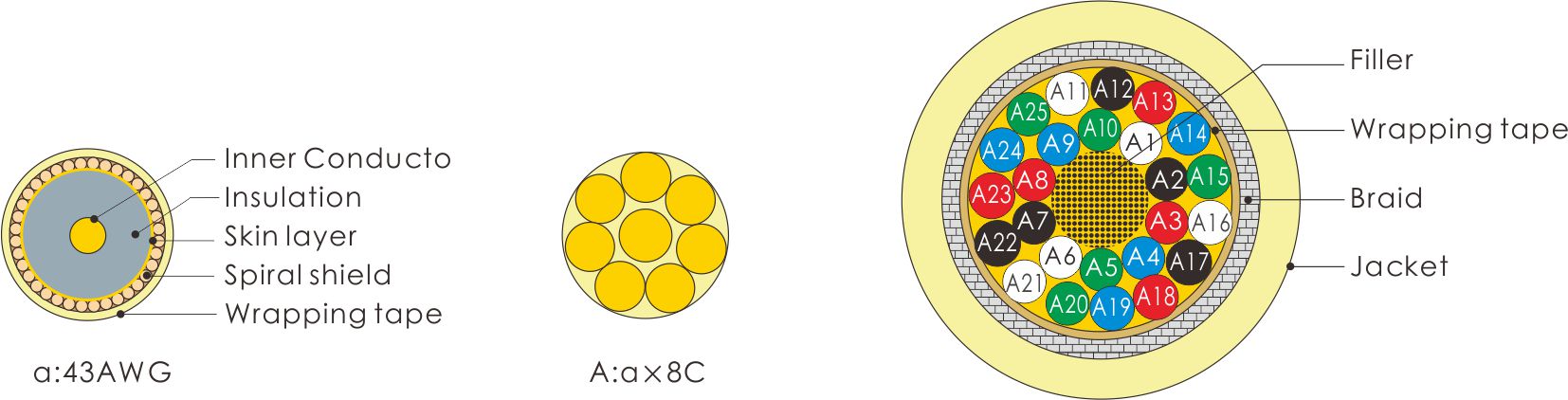

Construction And Material
| ITEM | DETAIL | |
| Core No. | 200 | |
| Inner Conductor | AWG Size | 43AWG |
| Material | Silver plated copper alloy | |
| Composition (No./mm) | 7/0.023 | |
| Diameter (mm) | 0.069 | |
| Insulation | Material | White Foamed PFA |
| Thickness (mm) | 0.07 | |
| Diameter(mm) | 0.21 | |
| Skin layer | Material | Red Polyester tape |
| Diameter(mm) | 0.01 | |
| Spiral shield | Material | Tinned annealed copper alloy |
| Thickness(mm) | 0.025 | |
| Coaxial Tape | Material | Polyester tape |
| Color | A1~A25: White , Black, Red, Blue, Green; White , Black, Red, Blue, Green; White , Black,Red, Blue, Green; White, Black, Red, Blue, Green; White , Black, Red, Blue, Green | |
| Thickness(mm) | 0.015 | |
| Diameter(mm) | 0.31 | |
| Filler | Material | kevlar |
| Cable assembly | First layer | A x 10 |
| Second layer | A x 15 | |
| Diameter | 6.0 | |
| Wrapping tape | Material | PTFE |
| Braid Shield | Material | Tinned tinsel copper |
| Thickness(mm) | 0.25 | |
| Coverage(%) | Min.90 | |
| Jacket | Material | Gray PVC, mat finished |
| Nom.Thickness(mm) | 0.9 | |
| Diameter(mm) | Nom. 8.4(Max.8.7) | |
Properties
| Item | Standard Value |
| Conductor Resistance(Ω/km@20℃) | max.7700 |
| Insulation Resistance(MΩ-km@20℃) | min.1000 |
| Dielectric Strenth(AC V/1min) | 500@Inner~Outer Conductor 5000@Shield~Ground earth |
| Capacitance(pF/m@1kHz) | Nom. 60 |
| Characteristic Impedance(Ω@10MHz) | Nom. 75 |
| Attenuation(dB/m@10MHz) | 0.5 |
