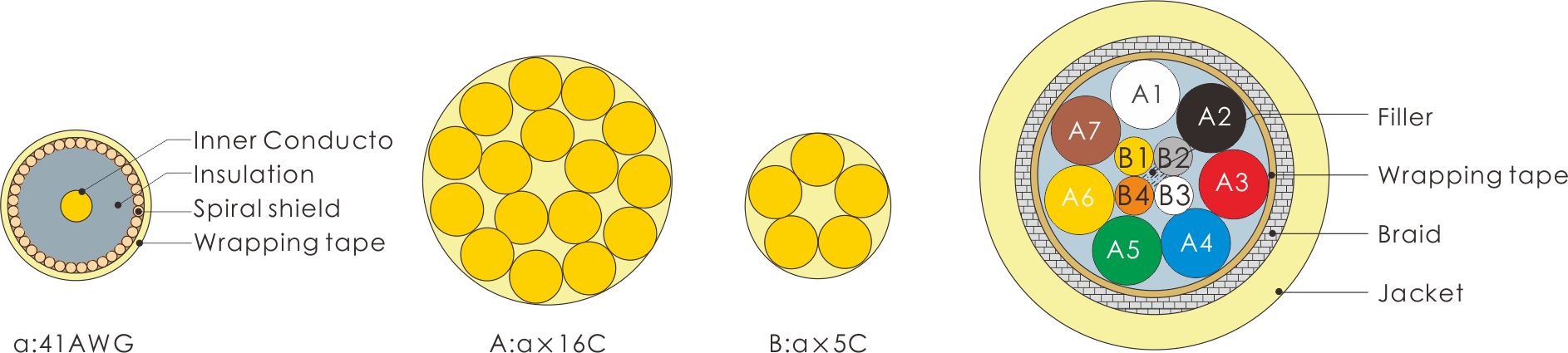

Construction And Material
| ITEM | A (41AWG x 16C) | B (41AWG x 5C) | |
| Core No. | 132 | ||
| Inner Conductor | Material | Silver plated copper alloy | |
| Composition(No./mm) | 7/0.028 | ||
| Diameter(mm) | 0.084 | ||
| Insulation | Material | White Foamed PFA | |
| Thickness (mm) | 0.105 | ||
| Diameter(mm) | 0.294 | ||
| Skin layer | Material | Orange polyester tape | |
| Diameter(mm) | 0.31 | ||
| Spiral shield | Material | Tinned copper alloy | |
| Diameter(mm) | 0.025 | ||
| Coaxial Tape | Material | Polyester tape | |
| Color | A1~A7: White, Black, Red, Blue, Green, Yellow, Brown; B1~B4: Yellow, Gray, White, Orange |
||
| Thickness(mm) | 0.02 | ||
| Diameter(mm) | 0.4 | ||
| Twisting | First layer | a x 5 | a x 5 |
| Second layer | a x 11 | / | |
| Filler | Material | kevlar | |
| Cable assembly | First layer | B x 4 | |
| Second layer | A x 7 | ||
| Diameter | Nom. 5.7 | ||
| Wrapping tape | Material | PTFE tape | |
| Braid Shield | Material | Tinned tinsel copper | |
| Diameter(mm) | 0.25 | ||
| Coverage(%) | Nom. 95(min. 90) | ||
| Jacket | Material | Non-migration PVC, Iovry | |
| Nom.Thickness(mm) | 0.8 | ||
| Diameter(mm) | 8.0(max. 8.3) | ||
Properties
| Item | Standard Value |
| Rating temperature(℃) | 60 |
| Rating voltage(V) | 30 |
| Conductor Resistance(Ω/km@20℃) | max.5000 |
| Insulation Resistance(MΩ-km@20℃) | min.1000 |
| Characteristic Impedance(Ω@10MHz) | Nom. 50 |
| Capacitance(pF/m@1kHz) | Nom. 85 |
| Dielectric Strenth(AC V/1min) | 500@Inner~Outer Conductor; 5000@Shield~Ground earth |
| Bending test(±90°, 12.7mm, 500g, 250000times) | Inner conductor, Braid, Jacket completed |
