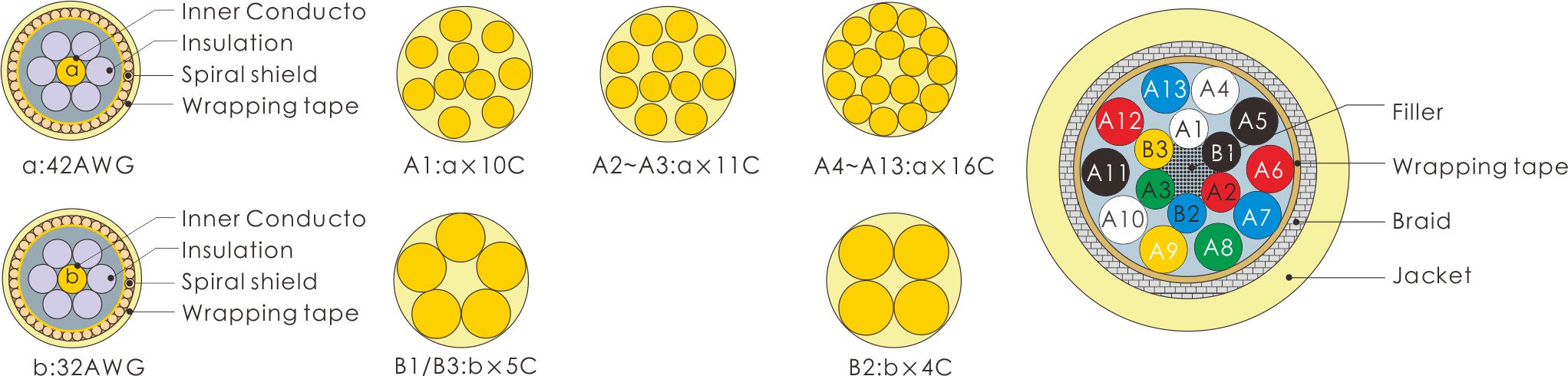

Construction And Material
| ITEM | DESCRIPTION | ||
| Core No. | 192 | 14 | |
| Inner Conductor | AWG Size | 42AWG | 32AWG |
| Material | Silver plated copper alloy | Tinned copper | |
| Composition(No./mm) | 7/0.025 | 7/0.08 | |
| Diameter(mm) | 0.075 | 0.24 | |
| Insulation | Material | Black PFA | |
| Thickness (mm) | 0.06 | 0.05 | |
| Diameter(mm) | 0.195 | 0.34 | |
| Spiral shield | Material | Tinned copper alloy | Tinned copper |
| Diameter(mm) | 0.025 | 0.025 | |
| Coaxial Tape | Material | Polyester tape | |
| Color | A1~A13: White, Red, Green, White, Black, Red, Blue, Green, Yellow, White, Black, Red, Blue;B1~B3: Black, Blue, Yellow |
||
| Thickness(mm) | 0.02 | 0.02 | |
| Diameter(mm) | 0.285(Max. 0.34) | 0.43(Max. 0.48) | |
| Filler | Material | kevlar | |
| Cable assembly | First layer | A x 3+B x 3 | |
| Second layer | A x 10 | ||
| Diameter | 5.8 | ||
| Braid | Material | Semi-conductive plastic resin：black | |
| Thickness | 0.25 | ||
| Diameter | 5.8 | ||
| Braid Shield | Material | Tinned tinsel copper | |
| Thickness(mm) | 0.25 | ||
| Coverage(%) | Nom.95(Min.90) | ||
| Jacket | Material | Non-migration PVC, :natural gray, mat finished | |
| Nom.Thickness(mm) | 0.75(Min. 0.4) | ||
| Diameter(mm) | 7.8±0.3 | ||
Properties
| Item | Standard Value | |
| Conductor Resistance(Ω/km@20℃) | Max.7500 | Max.575 |
| Capacitance(pF/m@1kHz) | Nom. 110±10% | / |
| Characteristic Impedance(Ω@10MHz) | Nom. 50 | / |
| Insulation Resistance(MΩ-km@20℃) | Min.1000 | |
| Dielectric Strenth(AC V/1min) | 500@Inner-outer conductor; 4000@Shield-ground earth | |
