Construction Specification

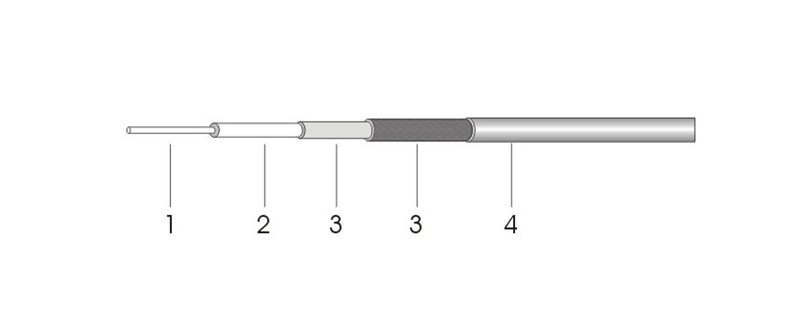

  Item  Material  Diameter(mm)
  1. Inner Conductor   Solid Copper   1.42
  2. Dielectric   Physical Foam Polyethylene   3.81
  3. Outer Conductor   Bonded Aluminum Foil + Tinned Copper Braid   Nom.4.52
  4. Jacket   Polyethylene   6.10

Electrical Characteristics

  Capacitance(pF/m)   79.4
  Impedance(ohm)   50
  Velocity of Propagation(%)   84
  Inner Conductor DC Resistance(ohm/m)   11.43
  Outer Conductor DC Resistance(ohm/m)   13.40
  Jacket Voltage Withstanding(Vrms)   5000
  Peak Power(KW)   5.6
  Shielding Effectiveness(>dB)   90

Mechanical and Environmental Characteristics

  Operating Temp(℃)   -40 to +80
  Bending Radius(mm)   30
  ROHS   Compliant

Attenuation and Avg. Power(20℃)

  Frequency(MHz)  Attenuation(dB/100m)  Avg. Power(KW)
  30   4.4   1.30
  50   5.7   1.00
  150   9.9   0.58
  220   12.0   0.48
  450   17.3   0.33
  900   24.8   0.23
  1500   32.4   0.18
  1800   35.6   0.16
  2000   37.7   0.15
  2500

  42.4

  0.13
  5800   66.8   0.09
