BMA

BMA RF Coaxial connectors are a type of mini drop-in connectors developed and produced according to the standards of IEC1169-33 and MIL-C-39012. They are universally used blind-mating RF coaxial connectors, whose reasonably designed floating range ensures safe and reliable the frequency reach 22GHz. Besides, they also have the frequency reach 22GHz. Besides, they also have the features of small size, easy mating, superior mechanical and electronic performance, etc. therefore, these series are widely used in the field of military and civil microwave communication.

Primary Technical Characteristics

  Elecreical Performance  Material and Mechanical Performance
  Characteristic Impedance   50Ω     Center Contact   Pin   Brass   Gold Plating
  Frequency Range   DC~18GHz     Socket   Beryllium Copper   Gold Plating
  Rated Voltage   335V rms     Body and Other Metal Parts   Brass/Stainless Steel   Gold plating / Passivation
  Dielectric Strength Voltage   1000V rms     Elastic Part     Beryllium Copper   Gold Plating
  VSWR   ≤1.15+0.012f      Insulator     PTFE
  Contact Resistance   ≤3.0mΩ   Center Contact   Seal Ring     Silicon Rubber
  ≤2.0mΩ   Outer Contact   Temperature Range     -65℃ ~+165℃
  Insulation Resistance   ≥5000MΩ     Durability     500 times
  Insertion Loss   ≤0.06√f(GHz)dB



Model

  Part Number  Cable Type  Notes

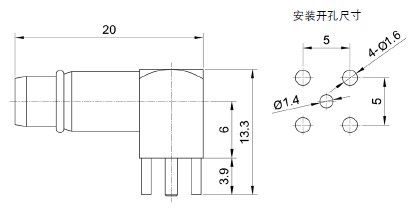

  BMA-JWHD
