4.3/10 Male for RW12N, Clamp  More Products

4.3/10 Male for RW12N, Clamp

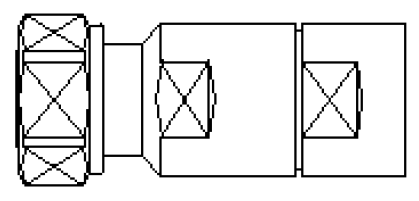

1Product Structure

Designation Material Plating

1 Inner Conductor Phosphor Bronze Silver - Plated

2 Insulator Polytetrafluoroethene (PTFE) White

3 Outer Conductor Brass TriMetal - Plated

4 Clamp Nut Brass TriMetal - Plated

5 Coupling Nut Brass TriMetal - Plated

6 Cable Clamp Phosphor Bronze TriMetal - Plated

7 O-Ring Silicone Rubber Red

8 Dust Cap Polypropylene (PP) Blue

9 Jelly Vaseline White



2 General Specifications

Interface 4.3/10 Male

Body Style Straight

Contact Attachment Inner Captivated

Outer Clamp

Standard IEC 60169-54

Cable Type RW12N (1/2” & 1/2”L)

Logo “KINGSIGNAL” etched by Laser

Weight 100±3 g



3 Electrical Specifications

Impedance 50 Ohm

Operating Frequency Band 0 - 3000 MHz

Insertion Loss, Typical ≤ 0.05×√F(GHz) dB

Return Loss (VSWR) DTF Typical Max

0 - 3000 MHz

698 - 960 MHz

1710 - 2170 MHz

2300 - 2400 MHz (Optional)

2496 - 2690 MHz (Optional)

≤ -28.3 dB (1.08)

≤ -36.6 dB (1.03)

≤ -32.3 dB (1.05)

≤ -32.3 dB (1.05)

≤ -32.3 dB (1.05)

≤ -23.1 dB (1.15)

≤ -28.3 dB (1.08)

≤ -26.4 dB (1.10)

≤ -26.4 dB (1.10)

≤ -26.4 dB (1.10)

≤ -21.7 dB (1.18)

≤ -26.4 dB (1.10)

≤ -24.3 dB (1.13)

≤ -24.3 dB (1.13)

≤ -24.3 dB (1.13)

3rd Order Intermodulation (2x43 dBm) ≤ -160 dBc (-117dBm) ≤ -155 dBc (-112dBm)

Contact Resistance Inner Conductor ≤ 1.0 mOhm

Outer Conductor ≤ 1.0 mOhm

Insulation Resistance ≥ 5000 MOhm

Average Power ≥ 700 W at 1 GHz

≥ 500 W at 2 GHz

Operating / Test Voltage (50Hz AC) ≥ 1800 / 2500V

Shielding Effectiveness ≥ 120 dB at DC to 6 GHz



4 Mechanical Specifications

Interface Durability 100 Cycles

Installation Durability 25 Cycles

Connector Retention Tensile Force ≥ 890 N (200 lbf)

Connector Retention Torque ≥ 5.5 N.m (48.00 lb.in)

Clamp Nut Proof Torque ≥ 25 N.m (307.30 lb.in)

Center Contact Tensile Force ≥ 30 N (7.020 lbf)

Center Contact Torque ≥ 5 N.cm (0.43 lb.in)

Coupling Nut Retention Force ≥ 450 N (100.00 lbf)

Coupling Nut Proof Torque ≥ 7 N.m (86.05 lb.in)



5 Environment Specifications

Operating Temperature -55°C to +90°C

Storage Temperature -55°C to +90°C

Immersion Depth 1 m

Immersion Test Mating Mated

Immersion Test Method IEC 60529:2001, IP68

Corrosion Test Method ISO 21207, Method B

Damp Heat Resistance Test Method IEC 61169-1, Sub-clause 9.4.3

Thermal Shock Test Method IEC 61169-1, Sub-clause 9.4.4

Vibration Test Method IEC 61169-1, Sub-clause 9.3.3

Mechanical Shock Test Method IEC 60068-2-27



6 Marking and Package Requirements

According to the Annex 1 and Packaging Specifications



7 Banned and Restricted Substances

RoHS 2002/95/EC Compliant by Exemption



8 Document Revision Information

Revision Description

A0 First revision

A1 Changed the Forums

B0 Size updated
