7/16 (Din) Female for RW78N, Clamp

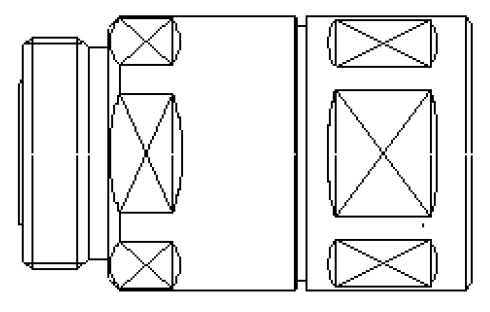

1Product Structure

Pos Designation Material

1 Inner Conductor Phosphor bronze, Silver - Plated

2 Insulator PTFE

3 Outer Conductor Brass, TriMetal - Plated

4 O-Ring Silicone Rubber

5 Dust Caps Polypropylene(PP)



2 General Specifications

Interface 7/16 Din Female

Body Style Straight

Inner Contact Attachment Spring Finger

Cable Size 7/8” & 7/8”S

Cable Type Foam Dielectric

Logo “KINGSIGNAL” etched by Laser

Weight 0.178 Kg

Length ≥ 47.9 mm

Diameter ≥ 35.5 mm



3 Electrical Specifications

Impedance 50Ω

Operating Frequency Range 0 - 2700 MHz

Insertion Loss, Typical ≤ 0.05×√F(GHz) dB

Return Loss, Typical 824 - 960 MHz ≤ -28.3 dB (1.08)

1710 - 2700 MHz ≤ -26.5 dB (1.10)

Intermodulation(3rd Order) ≤ -155 dBc (112 dBm) @ 910 MHz

Intermodulation(3rd Order) Test Method Two +43 dBm Carriers

Contact Resistance, Inner Conductor ≤ 0.4 mΩ

Contact Resistance, Outer Conductor ≤ 0.2 mΩ

Insulation Resistance ≥ 10000 MΩ

Average Power 3.0 kW @ 900 MHz

Operating Voltage (At sea level, 50Hz AC) ≤ 2700 V

Test Voltage (At sea level, 50Hz AC,

Endure over 1 minute)

≥ 4000 V



4 Mechanical Specifications

Interface Durability 500 Cycles

Interface Durability Method IEC 169-4:9.5

Connector Retention Tensile Force 1350 N (300 lbf)

Connector Retention Torque 8.2 N.m (72.00 lb.in)

Insertion Force 200 N (45.00 lbf)

Insertion Force Method IEC 169-1:15.2.4



5 Environment Specifications

Operating Temperature -55°C to +85°C

Storage Temperature -55°C to +85°C

Immersion Depth 1 m

Immersion Test Mating Mated

Immersion Test Method IEC 60529:2001, IP68

Moisture Resistance Test Method MIL-STD-202F, Method 106F

Mechanical Shock Test Method MIL-STD-202F, Method 213B, Test Condition C

Thermal Shock Test Method MIL-STD-202F, Method 107G, Test Condition A1,

Low Temperature -55°C

Vibration Test Method IEC 60068-2-6:2007

Corrosion Test Method IEC 60068-2-1:2007, test Ka



6 Marking and Package Requirements

According to the Packaging Specifications



7 Banned and Restricted Substances

RoHS 2002/95/EC Compliant by Exemption



8 Document Revision Information

Revision Description

A First revision

---- ----

D2 New Frequency added; Contact Resistance, Outer Conductor Changed.

E0 Drawing and Installation Dimensions added; Changed the Forums.

E1 Changed the Forums.

E2 New Frequency added.
