Test Cable
Maxflex 141  More Products

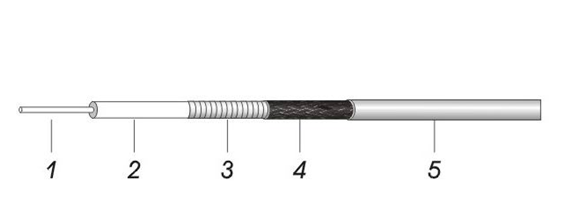

Construction Characteristic

  Item  Material  Diameter(mm)
  1. Inner Conductor   Silver Plated Copper Clad Steel   0.92
  2. Dielectric   PTFE   2.98
  3. Outer Conductor   Spiral Wrapped Silver Plated Copper tape   ---
  4. Outer Conductor   Silver Plated Copper Braid   Nom.3.50
  5. Jacket

  FEP

  4.15

Electrical Characteristic

  Capacitance(pF/m)   95.1
  Impedance(ohm)   50
  Velocity of Propagation(%)   70
  Cutoff frequency(GHz)   34
  Time Delay(ns/m)   4.7
  Max Operating Voltage(KVrms)   1.9
  Shielding Effectiveness up to 18GHz(dB)   100

Mechanical and Environmental Characteristic

  Min Bending Radius Static(mm)   15
  Min Bending Radius Repeated(mm)   50
  Operating Temp.(℃)   -65 to +200
  ROHS   Compliant

Attenuation

  Frequency(GHz)  Attenuation(dB/100m)  Frequency(GHz)  Attenuation(dB/100m)
  0.01   3.6   1.00   39.5
  0.05   8.1   1.20   43.7
  0.10   11.6   1.40   47.6
  0.15   14.3   1.50   49.5
  0.20   16.7   1.60   51.3
  0.30   20.6   1.80   54.8
  0.40   24.1   1.90   56.5
  0.45   25.6   2.00   58.2
  0.50   27.1   3.00   73.5
  0.60   29.9   5.00   99.4
  0.80   35.0   7.50   127.2
  0.85   36.1   10.00   152.3
  0.90   37.3   12.50   175.5
  0.95

  38.4

  18.00   222.6
