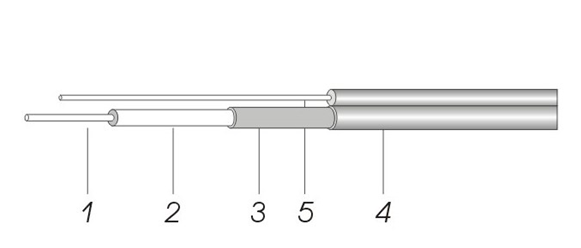

Construction Specification

  Item  Material  Diameter(mm)
  1. Inner conductor   Solid Copper or Copper Clad Aluminum   2.26
  2. Dielectric   Physical Foam Polyethylene   9.19
  3. Outer conductor   Welding Smooth Aluminum Tube   10.46
  4. Jacket

  Black Polyethylene

  12.07
  5. Messenger   steel   2.77

Electrical Characteristics

  Capacitance(pF/m)     50
  Impedance(ohm)     75
  Velocity of Propagation(%)     87
  Shielding Effectiveness(>dB)     100
  Max Testing Voltage(Vrms)
  5000
  Return loss(≥dB)   VHF
  UHF
  23
  20

Mechanical and Environmental Characteristics

  Operating Temp.(℃)   -40 to +80
  Min. Bend Radius(mm)   152
  Strength of Messenger(kgf)   816
  ROHS   Compliant

Attenuation(20℃)

  Frequency(MHz)  Attenuation(dB/100m)
  5   0.65
  55   2.26
  211   4.62
  400   6.46
  550   7.71
  750   9.12
  865   9.87
  1000   10.73
