Construction Specification

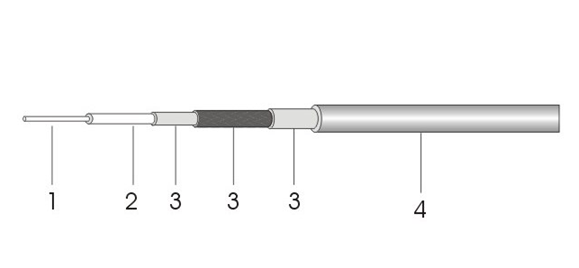

  Item  Material  Diameter(mm)
  1. Inner conductor   Solid Copper or Copper Clad Steel   1.63
  2. Dielectric   Physical Foam Polyethylene   7.11
  3. Outer conductor   Bonded Aluminum Foil + Aluminum Braid+ Un-bonded Aluminum Foil   Nom.7.80
  4. Jacket

  PVC or Polyethylene

  10.16

Electrical Characteristics

  Capacitance(pF/m)     52
  Impedance(ohm)     75
  Velocity of Propagation(%)     85
  Shielding Effectiveness(>dB)     80
  Max Testing Voltage(Vrms)
  5000
  Return loss(≥dB)   VHF
  UHF
  20
  20

Mechanical and Environmental Characteristics

  Operating Temp.(℃)   PVC
  PE
  -25 to +70
  -40 to +80
  Min. Bend Radius(mm)     50
  ROHS     Compliant

Attenuation(20℃)

  Frequency(MHz)  Attenuation(dB/100m)
  5   1.25
  55   3.15
  211   6.23
  400   8.53
  550   9.97
  750   11.97
  870   13.10
  1000   14.27
  1450   17.56
  1750   19.72
  2150   21.85
