    Outdoor Optical Cable Assembly G657A2, 2 Cores, LC(PC) - LC(PC), Black LSZH

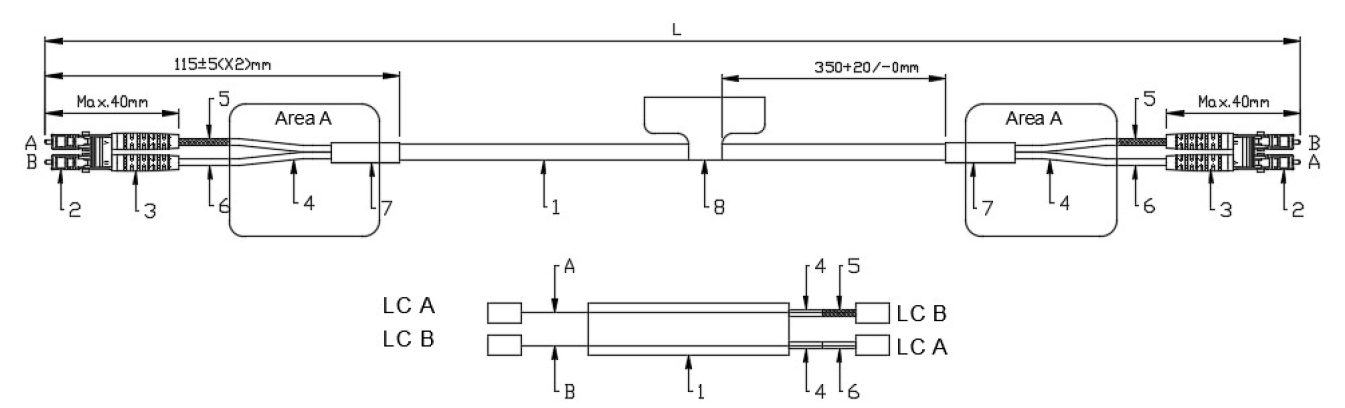

    1Product Structure

    Designation P/N. E/N. Material

    1 Cable OSK002_01 -- Outdoor Optical Cable, G657A2, Single-mode,

    2 Core with 0.9 mm Fiber, OD 4.8 mm, Black LSZH

    2 Connector -- -- LC Duplex for Single-mode Fiber, Blue

    3 Hood -- -- Tube for LC Connector, White

    4 Protective -- -- Flexible Protective with Steel Tube, OD Max.3.0 mm

    5 Identifier -- -- Heat Shrinkable Tube, Yellow

    6 Identifier -- -- Heat Shrinkable Tube, White

    7 Transition -- -- Molding, Black, OD7.5±0.5 mm, L=17±1mm

    8 Label -- -- Plastic Label, Waterproof

    A -- -- Fiber A, 9/125/245 μm, Red, Tight Tube, OD 0.9 mm

    B -- -- Fiber B, 9/125/245 μm, Blue, Tight Tube, OD 0.9 mm

    Note: Area A must withstand +95°C;



    2 Product List

    KS P/N                            KS E/N                         Designation

    OSK002_01_LPC_LPC/1       ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 1m

    OSK002_01_LPC_LPC/2       ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 2m

    OSK002_01_LPC_LPC/3       ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 3m

    OSK002_01_LPC_LPC/5       ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 5m

    OSK002_01_LPC_LPC/10     ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 10m

    OSK002_01_LPC_LPC/20     ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 20m

    OSK002_01_LPC_LPC/30     ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 30m

    OSK002_01_LPC_LPC/50     ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 50m

    OSK002_01_LPC_LPC/70     ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 70m

    OSK002_01_LPC_LPC/100   ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 100m

    OSK002_01_LPC_LPC/150   ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 150m

    OSK002_01_LPC_LPC/200   ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 200m

    OSK002_01_LPC_LPC/250   ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 250m

    OSK002_01_LPC_LPC/300   ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 300m

    OSK002_01_LPC_LPC/500   ---           CPRI, SM, Black LSZH, Duplex, LC(PC) - LC(PC), 500m



    3 Fiber Structure

    Standards ITU G.657 A2 / IEC60793-2-50 B6_a2

    Cladding Diameter 125 ± 0.7 μm

    Coating Diameter (Uncolored) 245 ± 7 μm

    Concentricity Error Core / Cladding ≤ 0.5 μm

    Concentricity Error Cladding / Coating ≤ 12.0 μm

    Cladding Non-Circularity ≤ 1.0 %

    Coating Non-Circularity ≤ 6.0 %



    4 Fiber Requirements

    Cable Cut-Off Wavelength λcc (nm) ≤ 1260

    Polarization Mode Dispersion (ps/√km) ≤ 0.2

    Zero Dispersion Wavelength λo (nm) 1300 - 1324

    Zero Dispersion Slope S0 at λo (ps/nm2•km) ≤ 0.092

    Attenuation Typical, (In Cable) 1310 / 1550 nm (dB/km) ≤ 0.35 / ≤ 0.21

    Attenuation Maximum, (In Cable) 1310 / 1550 nm (dB/km) ≤ 0.40 / ≤ 0.25

    Chromatic Dispersion 1310 / 1550 nm (ps/nm•km) ≤ 3.5 / ≤ 18.0

    Bending Loss 1550 nm, R = 7.5 mm (dB, 1 turn) ≤ 0.5

    1550 nm, R = 10 mm (dB, 1 turn) ≤ 0.1

    1550 nm, R = 15 mm (dB, 10 turn) ≤ 0.03
