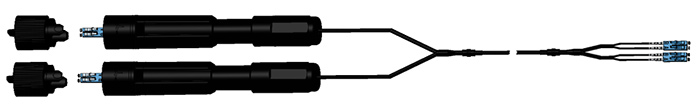

Multi core Optical cable assembly with waterproof connector

O.D of optical cable	7.0mm
Material of jacket	LSZH
fiber number	4-8芯
Tensile strength of optical cable installation/operation	2000N/1200N
Flattening Resistance of optical cable Long term/short term	5000N/2000N/dm
Temperature range	-40°~+ 85°
Flame resistant property	IEC 60332-1, IEC 60332-3-24
UV resistance	ISO 4892-3
Protection grade	IP68
Compatibility of waterproof connector	Compatible Full AXS interface
Length	As required
Type of fiber	9/125 G 657A2
Type of connector	LC duplex, single-mode
Optical property	IL≤0.3 dB RL≥50dB
