General Cable Assemblies

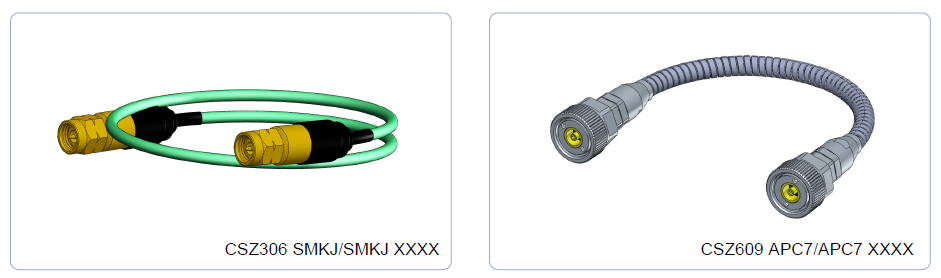

General Cable Assemblies More Products

· General Cable Assemblies

Home > Productos > Alta Frecuencia > Cable Assemblies

Pimary Performance of Some Typical Cable Assemblies

Part Number of Cable Assemblies	Frequency Range	VSWR	Insertion Loss dB Max
Z201 SMPK/SMPK XXXX	0~18 GHz	≤ 1.25	Standard Attenuation +2 × 0.06 f(GHz)
Z201 SMAJ/SMAJ XXXX	0~20 GHz	≤ 1.30
Z201 SMAJ/SMAK XXXX	0~20 GHz	≤ 1.35
Z302 NJ/NJ XXXX	0~18 GHz	≤ 1.25
Z302 NJ/NK XXXX	0~18 GHz	≤ 1.30
Z506 NJ/NJ XXXX	0~18 GHz	≤ 1.25
Z506 NJ/NK XXXX	0~18 GHz	≤ 1.30

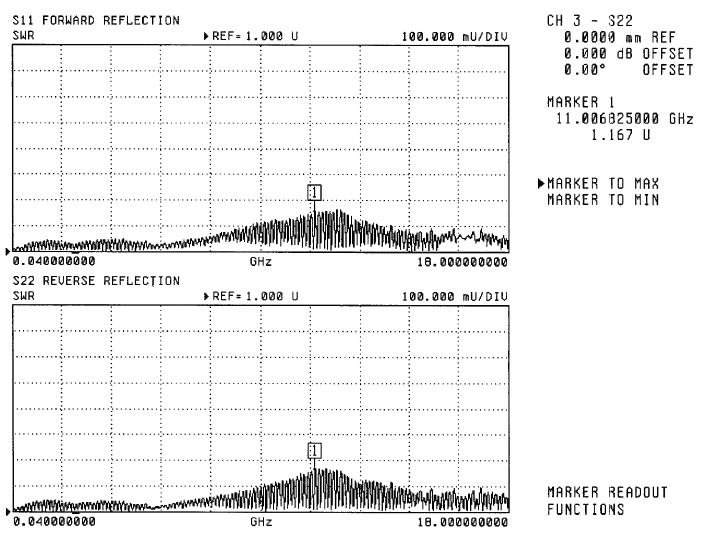

Typical VSWR Performance of Z506 NJ/NJ0500 Cable Assembly
