Butterfly Optical Cable
GJYX(F)CH  More Products





Technical Characteristics

• Small size, light weight, compact construction, easy to strip without tool for its special groove design, easy to install.

• Excellent tensile strength, able to endure the overhead installation in a span of 50 meters.

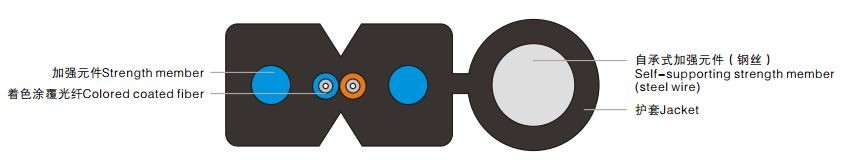

• Optical fiber(s)  is placed between two strength members, with excellent crush and tensile resistance.

• Excellent anti-bending property when G.657 bending insensitive fiber is applied.

• Used as drop cable from outdoor to indoor in access network or user premise network.

• Flame retardant LSZH jacket for indoor use.





Technical Parameter

Fiber CountCable Size(mm)Cable Weight(kg/km) Tensile Load(N)Crush Load(N/100mm)Temperature Range(℃)
Non-metallic strengthMetallic strength Long-termShort-termLong-termShort-term
1 5.1×2.0 18 21 300 600 1000 2200 -40~+60
2 5.1×2.0 18 21 300 600 1000 2200
3 5.1×2.0 18 21 300 600 1000 2200

Note:1. Minimum bend radius: for B6 fiber, 10H under dynamic bending and 5H under static bending. (H is the minor axis height of flat cable.) 2.All the data in the table are for reference and subject to change without notification.
