Basic Coaxial

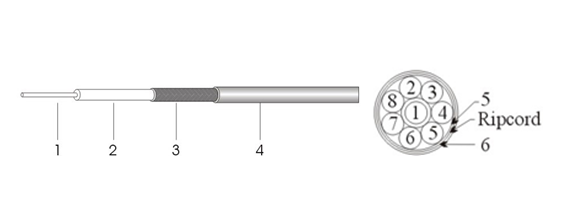

  Item  Material  Diameter(mm)
  1. Inner Conductor   Solid Copper   0.34
  2. Dielectric   Solid PE   2.00
  3. Outer Conductor   Tinned Copper Braid   Nom.2.50
  4. Inner Jacket

  PVC

  3.20
   *the coaxial jacket shall be marked with indelibly ink with numbers 1-8.
  Cable Construction
  Cable lay-up    The sixteen coaxial are assembled together, and wrapped with plastic tape.
  5. Outer Jacket Diameter   PVC   11.90
  6. Filling   Physical Foam Polyethylene   ---

Electrical Characteristic

  Max Inner Conductor DC Resistance(Ohm/km@20℃)   210
  Insulation Resistance(Gohm.km)   10
  Capacitance(pF/m)   Nom.67
  Impedance(ohm)   75
  Velocity of Propagation(%)   66
  Operating Voltage(Vrms)   500

Mechanical and Environmental Characteristic

  Operating Temp.(℃)   -25 to +70
  ROHS   Compliant

Attenuation

  Frequency(MHz)  Attenuation(dB/100m)
  1   2.3
  4   4.5
  17   9.2
  70   18.7
  200   32.0
