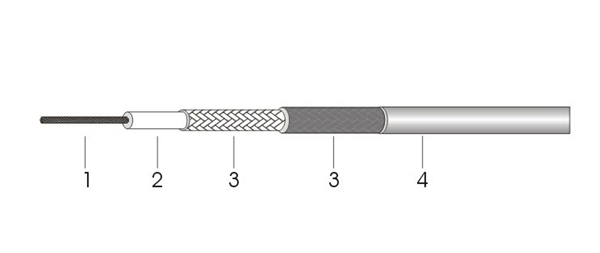

Construction Characteristic

  Item  Material  Diameter(mm)
  1. Inner Conductor   Silver Plated Copper   7X0.287
  2. Dielectric   LD PTFE   2.49
  3. Outer Conductor   Silver Plated Copper Tape Braid(95%)   ---
  4. Outer Conductor   Silver Plated Copper Braid(90%)   Nom.3.15
  5. Jacket

  FEP

  3.66

Electrical Characteristic

  Capacitance(pF/m)   85
  Impedance(ohm)   50
  Velocity of Propagation(%)   75
  Dielectric Resistance(MΩ.km)   >108

Mechanical and Environmental Characteristic

  Operating Temp.(℃)   -55 to +200
  ROHS   Compliant

Attenuation

  Frequency(GHz)  Attenuation(dB/m)
  0.5   0.357
  1.0   0.515
  3.0   0.898
  5.0   1.164
  10.0   1.656
  18.0   2.279
