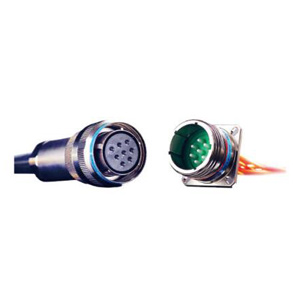

J599 Series Optical Connectors

Introduction：

Different shell materials and plating, applicable for different environments

Five-key way orientation, blind mating, anti mis-mating function

Tri-start thread quick coupling with anti-loose mechanism

Ceramic ferrule and sleeve to achieve precise mating

Various accessory types

Adapter (hermetic type optional) without optical cable bondage

Technical Performance：

Insertion loss: ≤0.6dB(≤4 cores), ≤0.75dB(≥5 cores)

Operating temperature: -55℃~+85℃

Vibration: 10~2000Hz, acceleration 147m/s²

Shock: 980 m/s²

Endurance: 500 cycles

Tensile strength: ≥720N (multi-core cable)
