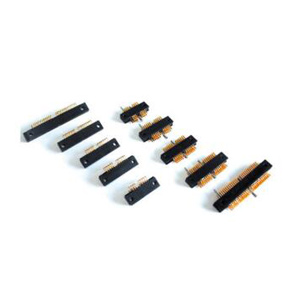

J30D Series Micro-miniature Connector
Introduction:
Micro-miniature connector, spacing 1.27*2.54mm
Plug with pins, right angle PCB; Receptacle with rigid socket, solder cup
Guide pin and guide socket can make locking after being mated
Contact arrangement: 51, 31, 23, 21, 15
Interchangeable with DRS/DRP series products which manufactured by OMNETICS company
Technical Performance:
-Mechanical
Vibration: 10~2000Hz, acceleration 196m/s2
Impact: acceleration 735m/s2
Durability: 500 cycles
-Electrical
Contact size: Φ0.56mm
Rated current: 3A
Contact resistance: ≤10mΩ
Withstanding voltage: 800V
Insulation resistance: ≥5000mΩ（normal）; ≥1000mΩ（heat & damp）
-Environment
Operating temperature: -55~+125℃
